Earthing testing and maintenance for working sites
Earthing inspection, resistance testing and maintenance planning for industrial, solar and building sites across Rajasthan.
Request a specification reviewDirect answer
What should you know about earthing testing and maintenance for working sites?
Earthing testing checks the installed condition and records whether the earth network is performing under the agreed measurement scope.

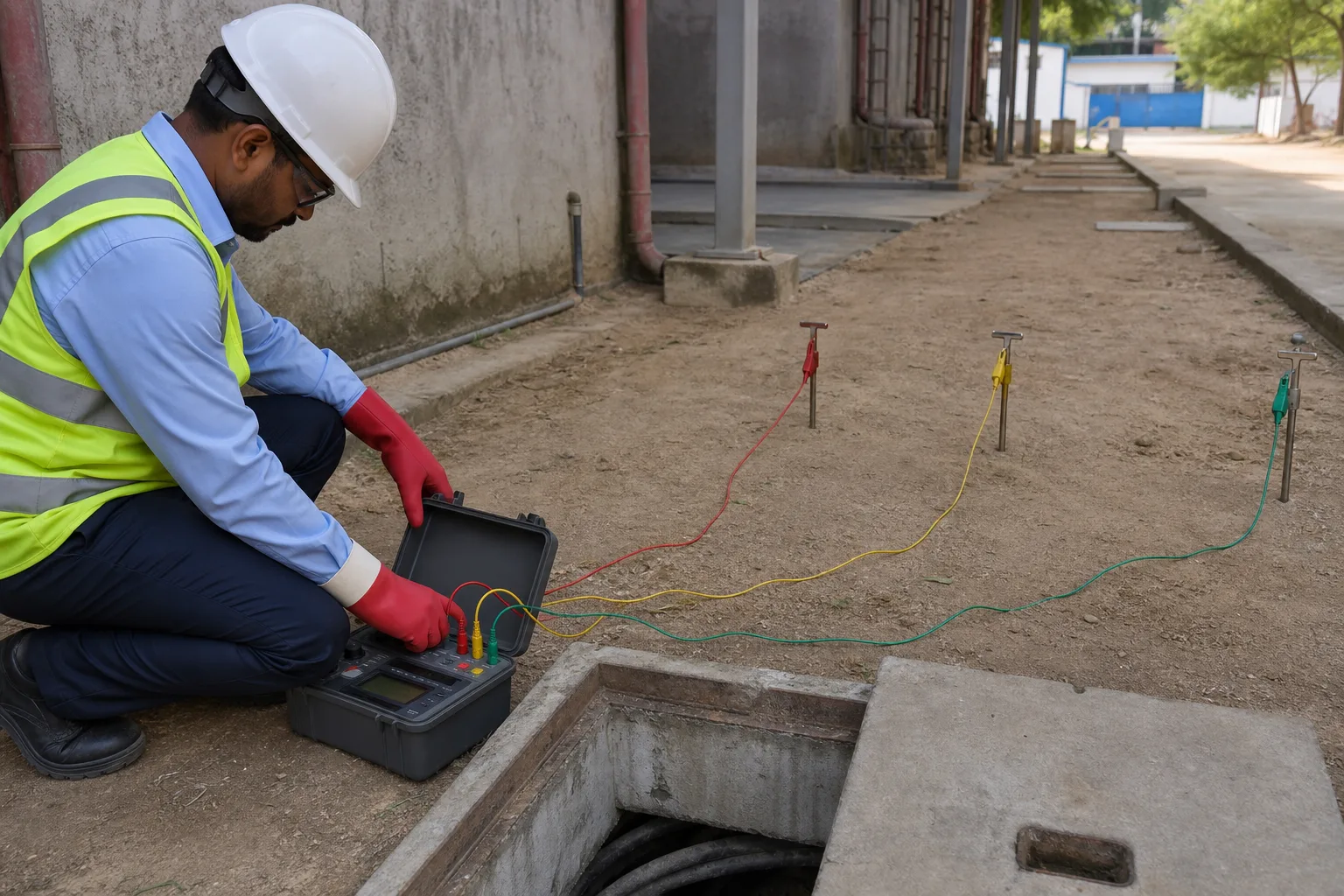

3E carries out earth-resistance measurement and inspection support. A single number without test method, weather, pit identity or instrument record is thin evidence, even when it looks reassuring on a handover sheet.
Condition
Chamber, terminal, conductor, clamp, corrosion and access observations
Measurement record
Method, instrument identification, date, weather and reading
Technical view
Why do earth readings change?
The ground is not static. Moisture, probe spacing, connected conductors, nearby electrodes, loose joints and seasonal soil conditions can shift the result, which is why the test record needs context.
When should maintenance lead to replacement?
Replacement is not the first move. Inspect the connection, chamber, conductor route and test conditions before condemning an electrode, then retest after any correction so the decision rests on evidence.
Specification
What should an earthing test record contain?
The test plan follows the site and applicable procedure. No universal pass value is stated here because system duty and project requirements differ.
- Asset identity
- Pit number, earth duty, location and linked equipment
- Condition
- Chamber, terminal, conductor, clamp, corrosion and access observations
- Measurement record
- Method, instrument identification, date, weather and reading
- Network context
- Isolation or connected condition and nearby parallel earth paths
- Comparison
- Previous readings and project acceptance requirement where available
- Maintenance input
- Observed defect, priority, proposed correction and retest need
Applications
Which sites need earthing checks?
Use the application to settle the duty, material, dimensions and evidence required in the offer.
- 01
Solar plants
Routine pit, conductor and lightning-earth checks across exposed generation sites.
- 02
Industrial facilities
Equipment, neutral and protective earth inspections tied to maintenance priorities.
- 03
Buildings and campuses
Existing earth pits checked before additions, audits or electrical alterations.
Questions from site and procurement teams
What should be clear before you proceed?
What is a good earth-resistance value?
There is no useful universal answer. The project design, earth duty, utility requirement and connected protection determine the acceptance target.
Can an earth pit be tested while connected?
The method and connected condition must be recorded. Parallel paths can change the reading, while isolation must follow safe site procedures.
Does maintenance-free earthing need maintenance?
Yes. The term describes the electrode and backfill approach, not permission to ignore terminals, chambers, corrosion and periodic readings.
Can testing show whether another electrode is needed?
It can provide part of the evidence. Soil, fault duty, spacing, network arrangement and the measured condition still need engineering review.
Bring us the drawing
Need an earthing test visit scoped?
Send the site location, pit count, earth duties, previous readings and access conditions. We will define the test record before fixing the visit.
